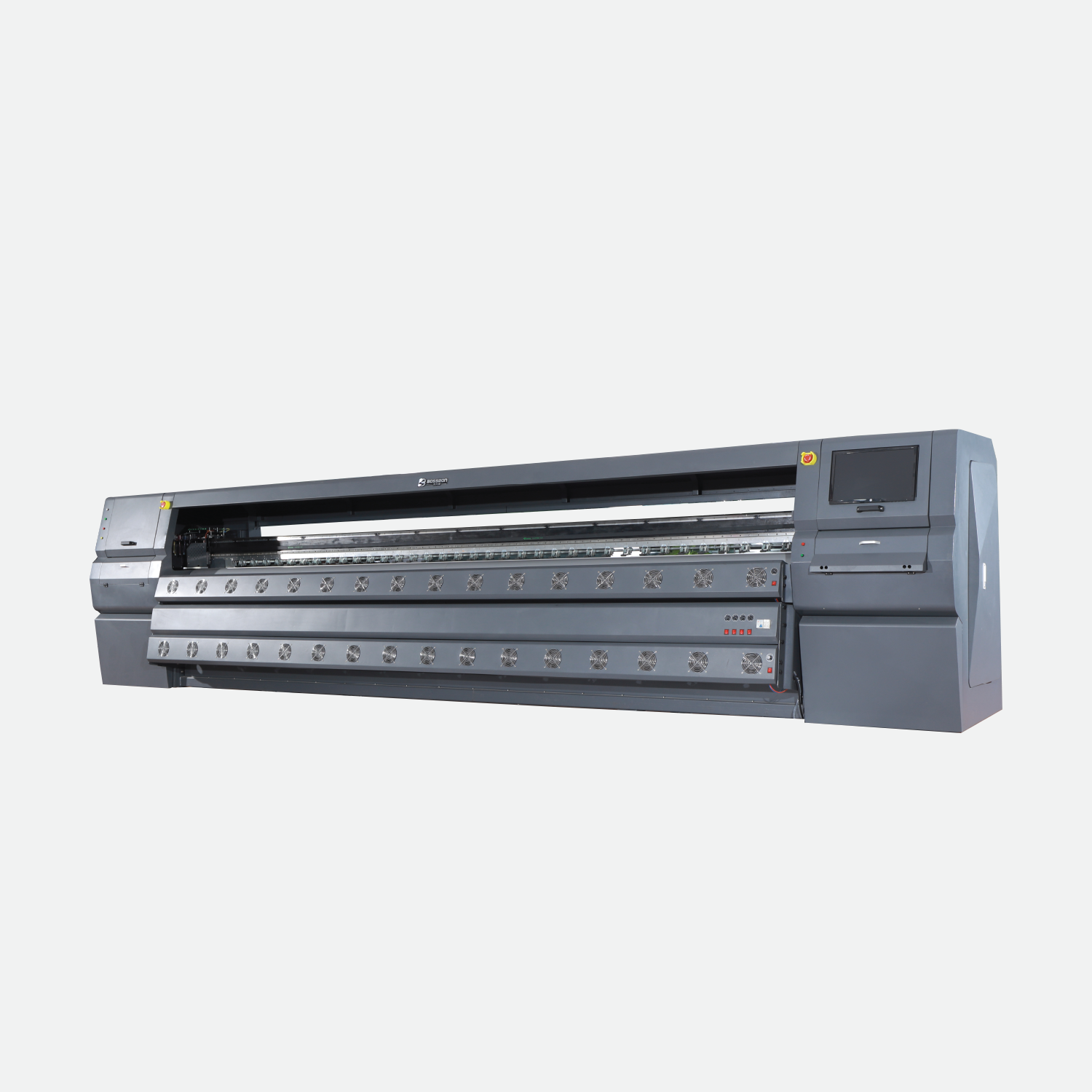

WT-5000L Heavy Duty Industrial Extra Large Solvent Printer

WT-5000L Heavy Duty Industrial Extra Large Solvent Printer

The WT-5000L Heavy-Duty Industrial Solvent Printer is designed for high-volume billboard and outdoor advertising production. Featuring Konica 512i or 1024i printheads (4 or 8 heads), it delivers ultra-fast output with printing speeds of up to 460 m²/h and a maximum print width of 5 meters. Optimized for PVC flex banners, vehicle wraps, and one-way vision media, the printer supports auto feeding and take-up, automatic printhead cleaning, and stable solvent-ink performance.

With Maintop and Photoprint RIP compatibility and robust industrial construction, the WT-5000L is a powerful solution for large-format print shops requiring speed, durability, and continuous production.

Category:
Call for query
<

WT-3300UR UV Billboard Printer

Model: WT-3300UR
Application Billboard Printing
Print System
Print Head Konica / GEN5
Print Head Quantity 4–16 (Selectable)
Maximum Print Width 3.3 m
Resolution 720 dpi – 2880 dpi
Height Adjustment 1.5 mm – 5 mm
Ink Type Environmental UV Curable Ink
Ink Colors C, M, Y, K, LC, LM, W, V
Printing Performance
Pass Mode Speed (m²/h)
6 Pass 60 m²/h
8 Pass 45 m²/h
Media & Material Handling
Feeding & Take-up System Auto Feeding & Take-up
Supported Materials Flexible Film, PET, PVC Flex Banner, and other soft rolling materials
Interface & Software
Print Interface USB
Software Print Factory / Photoprint
Work Environment Requirements
Temperature 20°C – 30°C
Humidity 30% – 65% RH
Power & Electrical
Power 5 KW
Electrical Requirement AC 220 ± 10%, 50 Hz ± 1 Hz
Physical Specifications
Package Size 5600 × 1500 × 1850 mm
Weight 1800 kg
Color

Black, Bronze, Gold
